Elastic Datasource

数据源

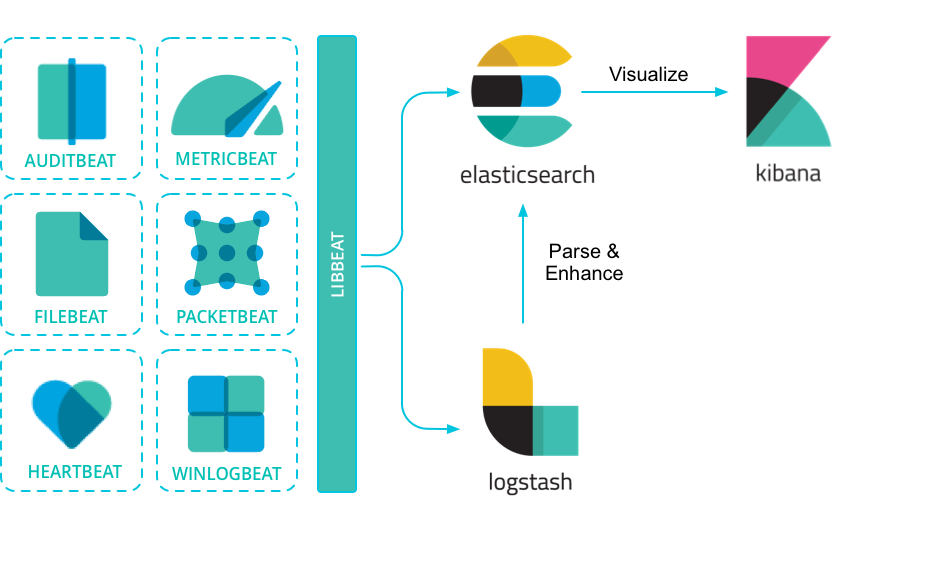

Beats

Filebeat

Metricbeat

Metricbeat is a lightweight way to send system and service statistics:

system-level CPU usage, memory, file system, disk IO, and network IO statistics, as well as top-like statistics for every process running on your systems.

collect metrics from services like Apache, Jolokia, NGINX, MongoDB, MySQL, PostgreSQL, Prometheus, and more.

Packetbeat

![img](Elastic Datasource.assets/packetbeat-monitoring-steps3.svg)

Winlogbeat

数据处理

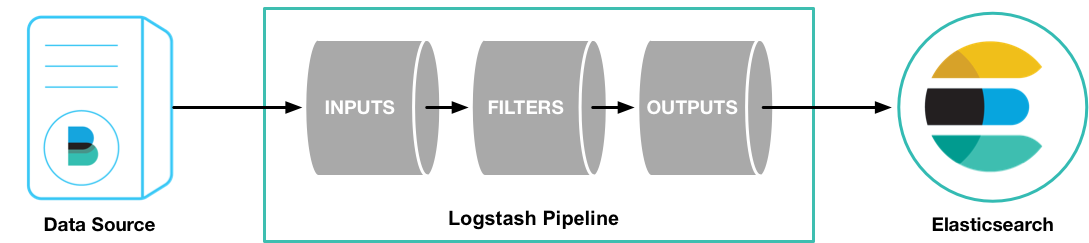

Logstash

Event ordering：https://www.elastic.co/guide/en/logstash/current/processing.html#event-ordering

插件介绍

Inputs

file：reads from a file on the filesystem, much like the UNIX command tail -0F

syslog：listens on the well-known port 514 for syslog messages and parses according to the RFC3164 format；

……

Filters

grok：parse and structure arbitrary text.
mutate：rename, remove, replace, and modify fields in your events.
geoip
date：==parses out a timestamp and uses it as the timestamp for the event (regardless of when you’re ingesting the log data).==
……

Accessing event data and fields in the configuration | Logstash Reference [7.15] | Elastic

Logstash configuration examples | Logstash Reference [7.15] | Elastic

Outputs

elasticsearch
file
……

采集器管理

Fleet provides a web-based UI in Kibana to add and manage integrations for popular services and platforms, as well as manage a fleet of Elastic Agents.

Install Elastic Agent (Fleet)

设置Fleet

修改Elasticsearch和Kibana集群的URL。

使用集中管理需要创建一个具有创建API keys并写入logs-*和metrics-*索引权限的用户（使用超级用户登录Kibana后可自动创建）。

Fleet作为服务运行于一个或多个Elast Agent上。

下载安装

Ubuntu

curl -L -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-<version>-amd64.deb
sudo dpkg -i elastic-agent-<version>-amd64.deb
sudo elastic-agent enroll -i <kibana_url> <enrollment_token> # 1,3
sudo systemctl enable elastic-agent
sudo systemctl start elastic-agent  # 2

没有systemd的系统（如WSL），使用service启动服务：
 service elastic-agent start
由于登记为服务，因此代理会在系统重启时启动启动。
kibana_url和enrollment_token可在代理添加页面找到。

安装目录位于/opt/Elastic/Agent。

Windows

从解压目录执行安装命令：

.\elastic-agent.exe install -i -f \
	--kibana-url=<kibana_url> \
	--enrollment-token=<token>

Download the Elastic Agent Windows zip file from the downloads page.

安装目录位于：C:\Program Files\Elastic\Agent。

代理管理

需要将集群使用的证书（Kibana）添加到代理所在系统（生成证书时要在配置文件中添加集群所使用的域名）。

Windows需要将证书添加到LocalMachine目录下。

从Fleet管理界面修改代理配置策略以及解除代理注册。

使用elastic-agent enroll命令重新注册到Fleet。

Install Elastic Agent （Manually）

配置文件

使用Fleet生成配置文件elastic-agent.yml，手动修改配置。

outputs:
  default:
    type: elasticsearch
    hosts:
      - 'http://localhost:9200'
    username: ES_USERNAME
    password: ES_PASSWORD

创建代理用户

POST /_security/role/standalone_agent
{
  "cluster": ["monitor"],
  "indices": [
    {
      "names": ["logs-*", "metrics-*", "events-*", ".ds-logs-*", ".ds-metrics-*", ".ds-events-*"],
      "privileges": ["write", "create_index", "indices:admin/auto_create"]
    }
  ]
}

安装

无需提供参数，安装程序将使用本地配置文件进行初始化。

Upgrade Elastic Agent

sudo elastic-agent upgrade <version-number>

卸载

cd C:\Program Files\Elastic\Agent
.\elastic-agent.exe uninstall

数据源

Elastic Endpoint Security

卸载

以管理员运行：

cd C:\Program Files\Elastic\Endpoint
.\elastic-endpoint.exe uninstall
